Rim Mach1 M910 Tubeless Ready 28"
Ref. RIMJA4528-32/BK
E-BIKE City · Urban · Trekking
Mach1 M910 rim, designed for heavily loaded e-bikes, tubeless ready. For city and trekking e-bikes.
Features
Wheel typeRim only
Diameter28"/29"/700C
BrakingDisc
ValveSchrader
ColourBlack
Description
Tyres28 – 65 mm
TubelessReady
ERD598 mm
Weight700 g

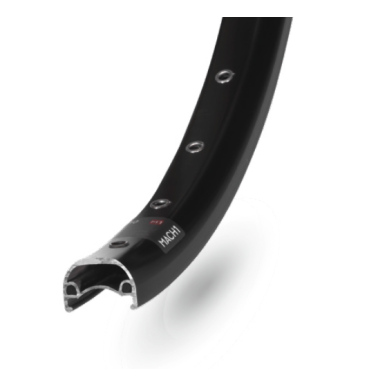

The Mach1 M910 rim
The Mach1 M910 rim is designed to offer exceptional strength and durability, and is specially suited to city e-bikes and trekking bikes. An eyeleted double-wall rim that optimises spoke tension and can support a total bike system weight of up to 180 kg. With a 23C width, it is compatible with every size of urban and all-road tyre, including tubeless tyres. It is the perfect choice for improving the reliability of your e-bike.
UseCity / Trekkinge-Trekking / e-City
Maximum load ratings
| Use | Axle Load | Max Load |
|---|---|---|
| e-City / e-Trekking | 120 kg | 180 kg |
Manufacturer figures, for a wheel built to the proper standard.
System weight covers bike, rider and load. Understanding these two figures →
Maximum pressure by tyre width
| Tyre widths (mm) | 23 – 28 | 29 – 35 | 37 – 45 | 47 – 55 | 57 – 62 | 64 – 71 |
|---|---|---|---|---|---|---|
| Tyre widths (inches) | 0.9 – 1.1″ | 1.15 – 1.4″ | 1.45 – 1.8″ | 1.85 – 2.1″ | 2.2 – 2.45″ | 2.5 – 2.8″ |
| Pressure (bar) | 11.5 | 11.5 – 10.5 | 9.5 – 7 | 6.5 – 5 | 5 – 4.5 | 4.5 |
Source: Mach1
Also needed
Specifications
| Reference | RIMJA4528-32/BK |
|---|---|
| Origin | Made in France |

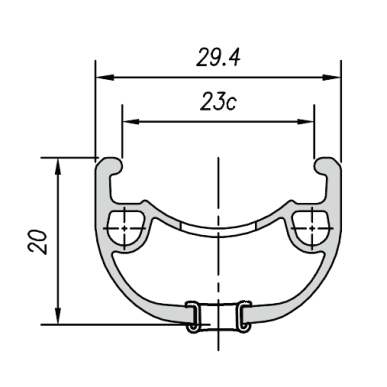

| ETRTO | 622 × 23C |
| Wall | Double |
